How to plot NexStorm lightning counts on wind graph?

Ricky told me this is possible… but i’ve never seen it been done.

Also, is it possible to set the %currentcond% tag to ‘thunderstorm’ if so many strikes fall in the close ring zone?

Cheers :smiley:

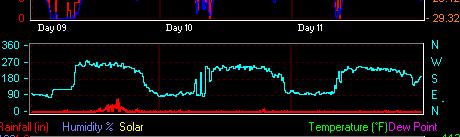

The attached shows an example of plotting on the wind direction graph, the red plot is lightning strikes.



Just open the Lightning counts window, easiest by clicking on the red number count to the right of the data quailty indicator at the bottom of the main screen.
Then there is a check box near the top for ‘Plot on main screen (wind direction graph)’ and a colour setting there too…

i could , yes, set the current conditions to thunderstorm…maybe i should add some threshold for that?

Thanks ricky, works well.

That would be really cool Brian :slight_smile:

Yeah that would be great :slight_smile:

try a new zip download…i have added this option to the bottom left hand corner of the ligthning graph screen…

i have ordered a boltec now, which will help my development and support of the it (and i have ordered nexstorm)

Thats great news!

not great news for the bank account though :frowning:
its my birthday coming up and I sweet talked the boss into making it my pressie :slight_smile:
(not sure if it will arrive in time though!)
